Part number

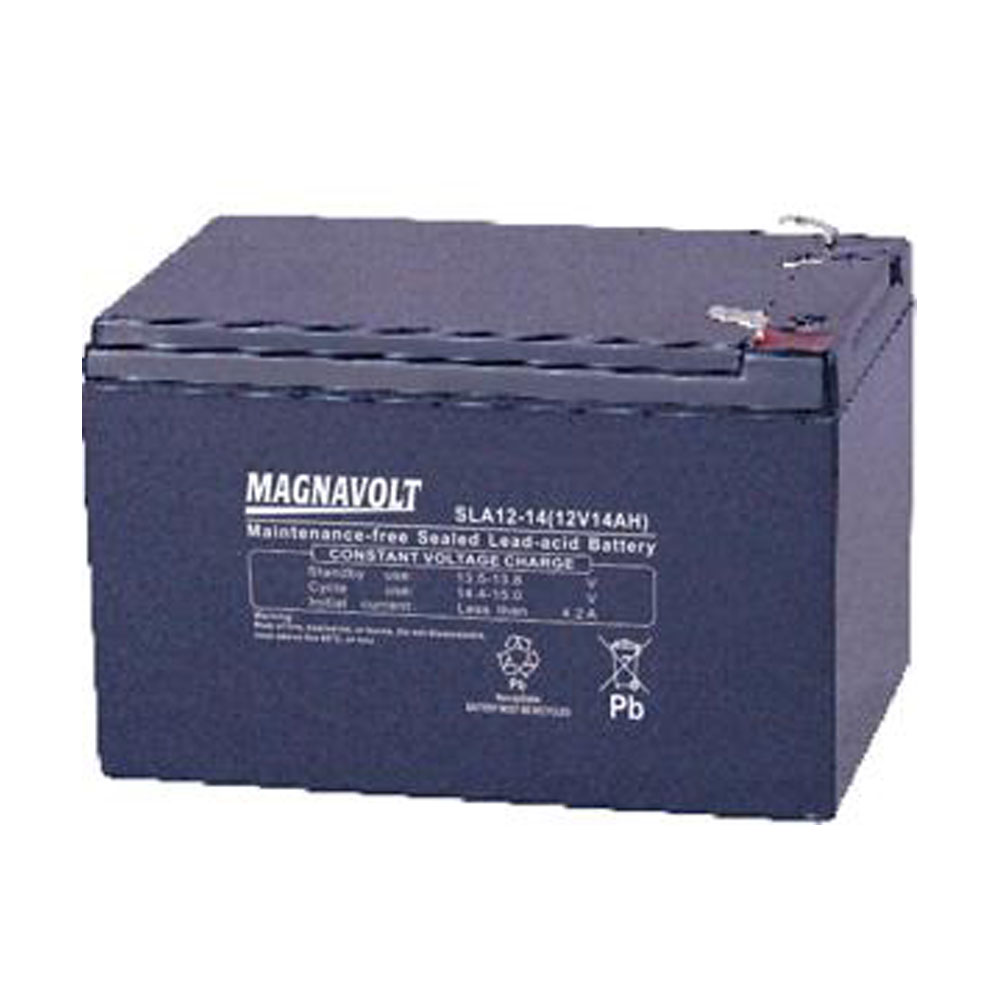

The Magnavolt SLA12-14 is a robust, high-capacity sealed lead acid battery, purpose-built for both critical backup and demanding primary power applications. Incorporating advanced VRLA – AGM technology with precision-engineered recombinant design, it delivers unwavering, maintenance-free energy for emergency lighting, UPS, EPS, mobility systems, medical equipment, alarms, railway signals, and communication networks.
With deep discharge protection, corrosion-resistant construction, and exceptional cycling endurance, the SLA12-14 excels in both stationary and mobile environments. Its sealed, valve-regulated configuration enhances safety, prevents leakage, and eliminates routine maintenance, ensuring reliable operation year after year.
Designed for longevity, the SLA12-14 offers a prolonged shelf life and stable output. Supported by a 1-year warranty for standard use, it is the dependable choice when uninterrupted power is non-negotiable.
| Height (in) | 3.74 |
|---|---|
| Length (in) | 5.94 |
| Width (in) | 3.86 |
| Amp Hours @ 10Hr | 13.02 |
| Amp Hours @ 1Hr | 8.79 |
| Amp Hours @ 20Hr | 14 |
| Amp Hours @ 5Hr | 11.9 |
| Terminal | T1/T2 |
| Voltage | 12 Volt |
| Weight (kg) | 4.05 |
| Weight (lbs) | 8.93 |
| Height (in) | 3.7 |
|---|---|
| Length (in) | 5.94 |
| Width (in) | 2.01 |
| Amp Hours @ 10Hr | 11.16 |
| Amp Hours @ 1Hr | 7.54 |
| Amp Hours @ 20Hr | 12 |
| Amp Hours @ 5Hr | 10.2 |
| Terminal | T1/T2 |
| Voltage | 6 Volt |
| Weight (kg) | 1.95 |
| Weight (lbs) | 4.3 |
| Height (in) | 3.98 |
|---|---|
| Length (in) | 2.76 |
| Width (in) | 1.85 |
| Amp Hours @ 10Hr | 4.19 |
| Amp Hours @ 1Hr | 2.83 |
| Amp Hours @ 20Hr | 4.5 |
| Amp Hours @ 5Hr | 3.83 |
| Terminal | T1 |
| Voltage | 6 Volt |
| Weight (kg) | 0.81 |
| Weight (lbs) | 1.79 |
| Height (in) | 3.98 |
|---|---|
| Length (in) | 3.54 |
| Width (in) | 2.76 |
| Amp Hours @ 10Hr | 4.19 |
| Amp Hours @ 1Hr | 2.83 |
| Amp Hours @ 20Hr | 4.5 |
| Amp Hours @ 5Hr | 3.83 |
| Terminal | T1/T2 |
| Voltage | 12 Volt |
| Weight (kg) | 1.48 |
| Weight (lbs) | 3.26 |
| Height (in) | 6.59 |
|---|---|
| Length (in) | 7.15 |
| Width (in) | 3.03 |
| Amp Hours @ 10Hr | 18 |
| Amp Hours @ 1Hr | 11.1 |
| Amp Hours @ 20Hr | 19.1 |
| Amp Hours @ 5Hr | 15.6 |
| Terminal | T2 |
| Voltage | 12 Volt |
| Weight (kg) | 5.7 |
| Weight (lbs) | 12.57 |
