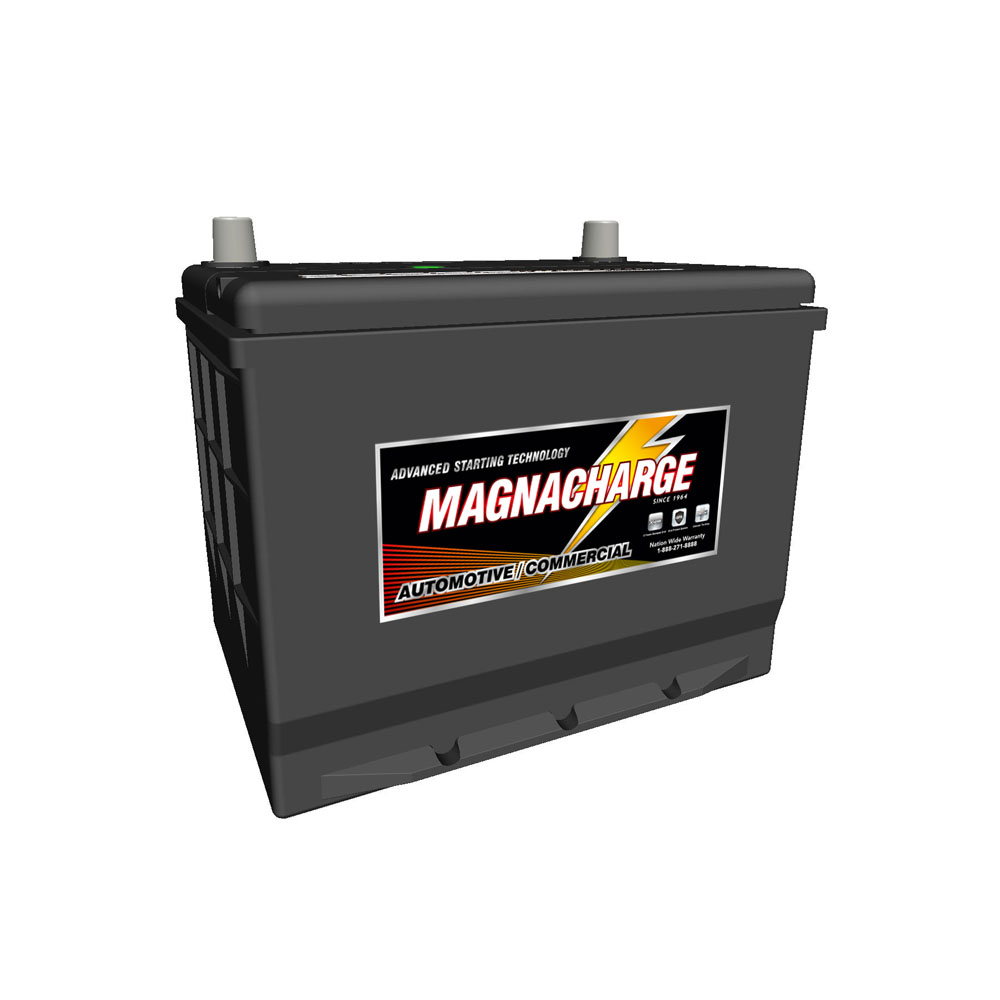

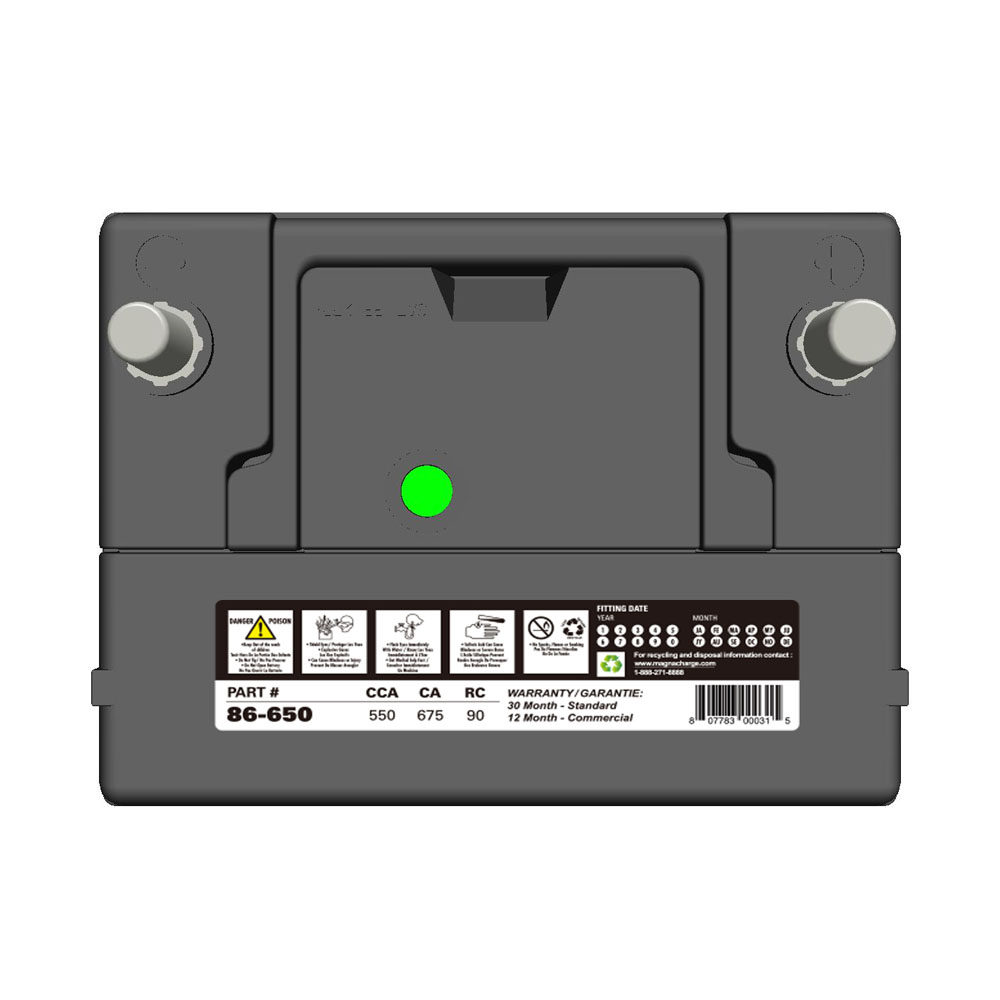

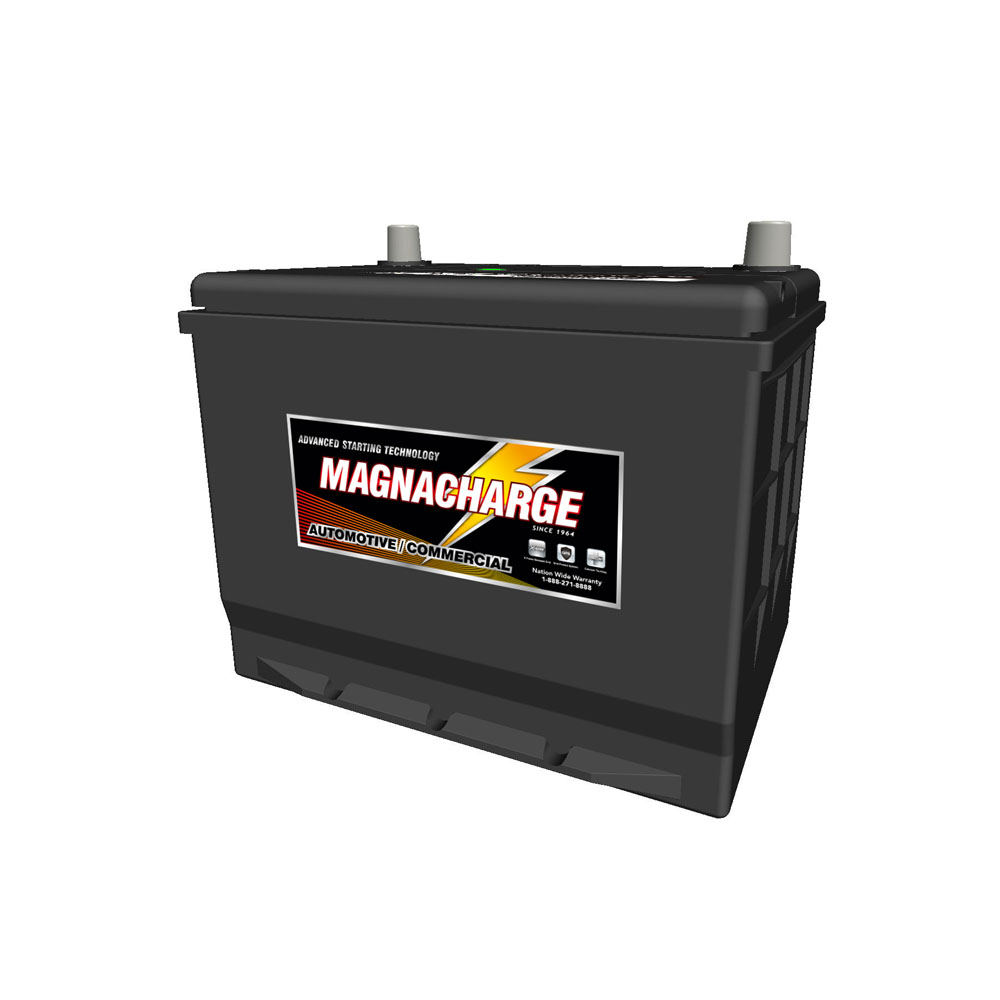

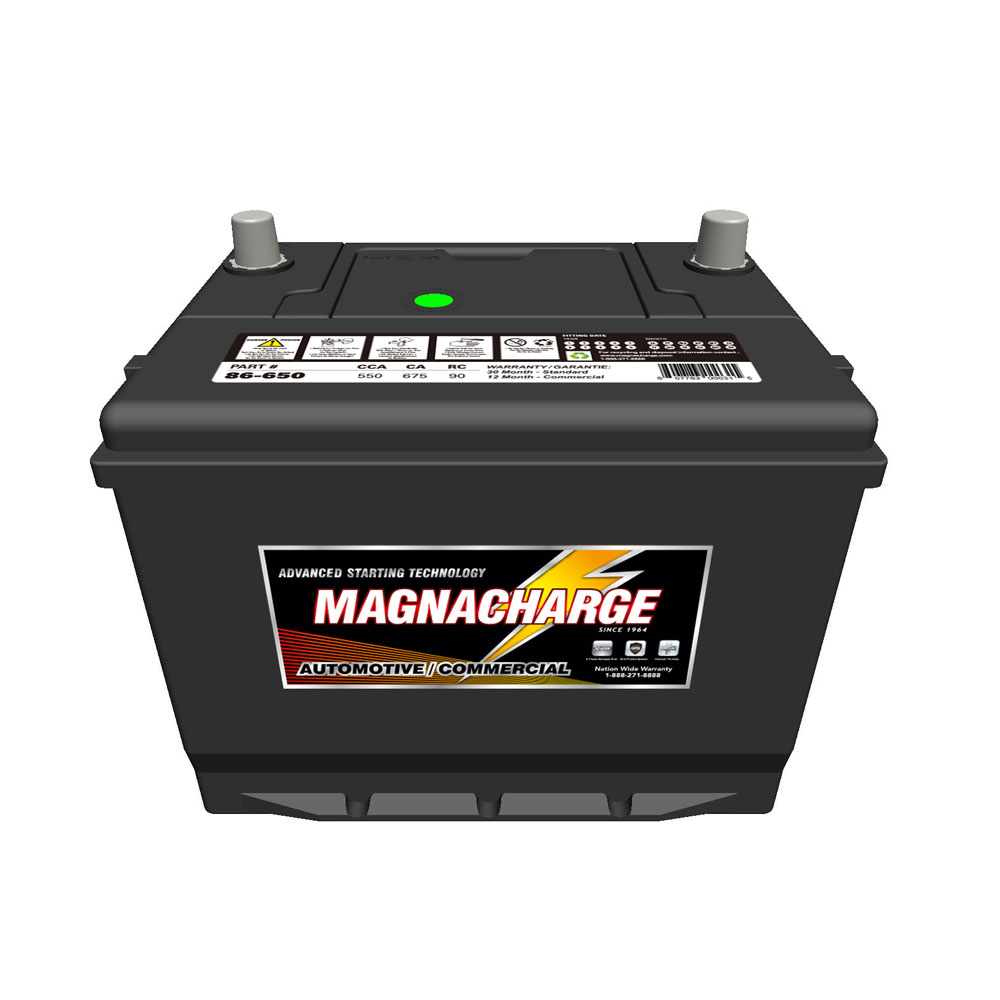

86-650
Automotive Starting Top Terminal-12 Volt
Automotive and Commercial vehicles can be powered with our complete line of Magnacharge batteries; available in premium advanced starting technology and an ever-increasing assortment of AGM technology to meet the demand placed on today’s vehicle.
ISS (Idle-Start-Stop) technology communicates with the engine to shutdown when the vehicle is “idle” and restarts the engine when the vehicle begins acceleration. This technology helps reduce Co2 emission, offers increased fuel economy and improves the driving experience, it also requires optimized batteries that can accommodate the
cycling requirements while the vehicle sits idle and the constant “start-stop” strain on the battery.
Our advanced starting technology and assortment of AGM options are engineered to provide the best power
solutions to meet the increased demand and production of vehicles equipped with ISS technology and offers even
greater performance for traditional ICE (Internal combustion engines)
| Height (in) | 8 |
|---|---|
| Length (in) | 9.06 |
| Width (in) | 6.81 |
| Cold Cranking Amps (CCA) | 550 |
| Cranking Amps (CA) | 675 |
| Group Size | 86 |
| Reserve Capacity | 90 |
| Terminal | Top Terminal |
| Voltage | 12 Volt |
| Warranty | Personal 30 Mo./Commercial 18 Mo. Free |
| Make | Model | Year | Engine |
|---|---|---|---|
| Cadillac | XLR | 2005 | 4.6L V8 |
| Cadillac | XLR | 2005 - 2005 - 2004 - 2004 - 2004 | 4.6L V8 |
| Chevrolet | Aveo | 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2006 - 2006 - 2005 - 2005 - 2004 - 2004 | 1.6L 1598CC L4 |
| Chevrolet | Aveo5 | 2011 - 2011 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 - 2006 | 1.6L 1598CC L4 |
| Chevrolet | Optra | 2007 - 2007 - 2006 - 2005 - 2004 | 2L 1998CC L4 |
| Chevrolet | Optra | 2006 | 2L 1999CC L4 |
| Chevrolet | Colorado | 2012 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2.9L 2921CC L4 |
| Chevrolet | Colorado | 2012 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2007 | 3.7L 3654CC L5 |
| Chevrolet | Colorado | 2012 - 2012 - 2011 - 2011 - 2010 - 2010 - 2009 - 2009 | 5.3L 5328CC V8 |
| Chevrolet | Colorado | 2006 - 2006 - 2006 - 2005 - 2005 - 2005 - 2004 - 2004 - 2004 | 3.5L 3460CC L5 |
| Chevrolet | Colorado | 2006 - 2006 - 2005 - 2005 - 2004 - 2004 | 2.8L 2770CC L4 |
| Chevrolet | Corvette | 2005 - 2005 - 2005 | 6L 5967CC V8 |
| Chevrolet | Corvette | 2004 - 2004 - 2004 | 5.7L V8 |
| Chrysler | 200 | 2014 - 2014 - 2013 - 2013 - 2012 - 2012 - 2011 - 2011 | 3.6L 3604CC V6 |
| Chrysler | 200 | 2014 - 2014 - 2014 - 2013 - 2013 - 2013 - 2012 - 2012 - 2012 - 2011 - 2011 | 2.4L 2360CC L4 |
| Chrysler | 200 | 2013 - 2012 | 3.6L 3605CC V6 |
| Chrysler | Sebring | 2010 - 2009 - 2008 - 2007 | 2.4L 2360CC L4 |
| Chrysler | Sebring | 2010 - 2009 - 2008 - 2007 - 2005 - 2004 - 2003 - 2002 - 2001 | 2.7L 2736CC V6 |
| Chrysler | Sebring | 2010 - 2009 - 2008 - 2007 | 3.5L 3497CC V6 |
| Chrysler | Sebring | 2005 - 2004 - 2003 - 2002 - 2001 | 3L 2972CC V6 |
| Chrysler | Sebring | 2005 - 2004 - 2003 - 2002 - 2001 | 2.4L 2351CC L4 |
| Chrysler | Sebring | 2005 - 2004 - 2003 - 2002 - 2001 - 1998 - 1997 - 1997 - 1996 - 1996 | 2.4L 2429CC L4 |
| Chrysler | Sebring | 2000 - 1999 - 1998 - 1997 - 1996 - 1995 | 2.5L 2497CC V6 |
| Chrysler | Sebring | 1999 - 1998 - 1997 - 1997 - 1996 - 1996 - 1995 - 1995 | 2L 1996CC L4 |
| Daewoo | Lanos | 2002 - 2001 - 2000 - 1999 | 1.5L 1498CC L4 |
| Daewoo | Lanos | 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 | 1.6L 1588CC L4 |
| Daewoo | Leganza | 2002 - 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 | 2.2L 2198CC L4 |
| Daewoo | Nubira | 2002 - 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 | 2L 1998CC L4 |
| Dodge | Avenger | 2014 - 2014 - 2013 - 2013 - 2012 - 2012 - 2011 - 2011 | 3.6L 3604CC V6 |
| Dodge | Avenger | 2014 - 2014 - 2014 - 2013 - 2013 - 2013 - 2012 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 | 2.4L 2360CC L4 |
| Dodge | Avenger | 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 | 3.5L 3497CC V6 |
| Dodge | Avenger | 2010 - 2009 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2008 | 2.7L 2736CC V6 |
| Dodge | Avenger | 2000 - 1999 - 1999 - 1998 - 1998 - 1997 - 1997 - 1996 - 1996 - 1995 - 1995 | 2.5L 2497CC V6 |
| Dodge | Avenger | 1999 - 1999 - 1998 - 1998 - 1997 - 1997 - 1996 - 1996 - 1995 - 1995 | 2L 1996CC L4 |
| Dodge | Caliber | 2012 - 2012 - 2011 - 2011 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2L 1998CC L4 |
| Dodge | Caliber | 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2007 | 2.4L 2360CC L4 |
| Dodge | Caliber | 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 1.8L 1798CC L4 |
| Dodge | Journey | 2020 - 2020 - 2020 - 2019 - 2019 - 2019 - 2018 - 2018 - 2018 - 2017 - 2017 - 2017 - 2016 - 2016 - 2016 - 2015 - 2015 - 2015 - 2014 - 2014 - 2014 - 2013 - 2013 - 2013 - 2012 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 | 2.4L 2360CC L4 |
| Dodge | Journey | 2019 - 2019 - 2019 - 2018 - 2018 - 2018 - 2017 - 2017 - 2017 - 2016 - 2016 - 2015 - 2015 - 2014 - 2014 - 2013 - 2013 - 2012 - 2012 - 2011 - 2011 | 3.6L 3604CC V6 |
| Dodge | Journey | 2016 - 2015 - 2014 - 2013 - 2012 - 2011 | 3.6L 3605CC V6 |
| Dodge | Journey | 2010 - 2010 - 2010 - 2009 - 2009 - 2009 | 3.5L 3497CC V6 |
| Dodge | Stratus | 2006 - 2005 - 2004 - 2003 - 2002 - 2001 | 2.4L 2429CC L4 |
| Dodge | Stratus | 2006 - 2005 - 2004 - 2003 - 2002 - 2002 - 2001 | 2.7L 2736CC V6 |
| Dodge | Stratus | 2005 - 2004 - 2003 - 2002 - 2001 | 3L 2972CC V6 |
| Dodge | Stratus | 2005 - 2004 - 2003 - 2002 - 2001 | 2.4L 2351CC L4 |
| Dodge | Stratus | 2000 - 2000 - 1999 - 1999 - 1998 - 1998 - 1997 - 1997 - 1996 - 1996 - 1995 - 1995 | 2.5L 2497CC V6 |
| Dodge | Stratus | 2000 - 2000 - 2000 - 1999 - 1999 - 1999 - 1998 - 1998 - 1998 - 1997 - 1997 - 1996 - 1996 - 1995 - 1995 | 2L 1996CC L4 |
| Eagle | Talon | 1998 - 1998 - 1998 - 1997 - 1997 - 1997 - 1996 - 1996 - 1996 - 1995 - 1995 - 1995 | 2L 1996CC L4 |
| Eagle | Talon | 1998 - 1998 - 1998 - 1997 - 1997 - 1997 - 1996 - 1996 - 1996 - 1995 - 1995 - 1995 - 1994 - 1994 - 1994 - 1993 - 1993 - 1993 - 1992 - 1992 - 1992 - 1991 - 1991 - 1991 - 1990 - 1990 - 1990 | 2L 1997CC L4 |
| Eagle | Talon | 1994 - 1994 - 1994 - 1993 - 1993 - 1993 | 1.8L 1755CC L4 |
| GMC | Canyon | 2012 - 2012 - 2011 - 2011 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2.9L 2921CC L4 |
| GMC | Canyon | 2012 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2007 | 3.7L 3654CC L5 |
| GMC | Canyon | 2012 - 2012 - 2011 - 2011 - 2010 - 2010 - 2009 | 5.3L 5328CC V8 |
| GMC | Canyon | 2006 - 2006 - 2005 - 2005 - 2004 - 2004 | 3.5L 3460CC L5 |
| GMC | Canyon | 2006 - 2006 - 2005 - 2005 - 2004 - 2004 | 2.8L 2770CC L4 |
| Honda | Passport | 1996 - 1996 | 2.6L 2559CC L4 |
| Hummer | H3 | 2008 - 2008 - 2007 - 2007 - 2007 - 2010 - 2010 - 2010 - 2009 - 2009 - 2008 | 3.7L 3654CC L5 |
| Hummer | H3 | 2008 - 2010 - 2010 - 2010 - 2009 - 2009 - 2008 | 5.3L 5328CC V8 |
| Hummer | H3 | 2006 - 2006 - 2006 | 3.5L 3460CC L5 |
| Hummer | H3T | 2010 - 2010 - 2010 - 2009 - 2009 | 3.7L 3654CC L5 |
| Hummer | H3T | 2010 - 2010 - 2010 - 2010 - 2009 - 2009 | 5.3L 5328CC V8 |
| Isuzu | i-280 | 2006 | 2.8L 2770CC L4 |
| Isuzu | i-290 | 2008 - 2007 - 2007 | 2.9L 2921CC L4 |
| Isuzu | i-350 | 2006 - 2006 | 3.5L 3460CC L5 |
| Isuzu | i-370 | 2008 - 2007 | 3.7L 3654CC L5 |
| Isuzu | Rodeo | 1997 - 1997 - 1996 - 1996 - 1995 - 1995 - 1994 - 1994 - 1993 - 1993 | 2.6L 2559CC L4 |
| Isuzu | Rodeo | 1996 - 1995 - 1994 - 1993 | 3.2L 3165CC V6 |
| Jeep | Compass | 2017 - 2017 - 2016 - 2016 - 2015 - 2015 - 2014 - 2014 - 2013 - 2013 - 2012 - 2012 - 2011 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2L 1998CC L4 |
| Jeep | Compass | 2016 - 2016 - 2016 - 2015 - 2015 - 2015 - 2014 - 2014 - 2014 - 2013 - 2013 - 2013 - 2012 - 2012 - 2012 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2007 | 2.4L 2360CC L4 |
| Jeep | Liberty | 2002 - 2002 - 2002 | 3.7L V6 |
| Jeep | Liberty | 2002 | 2.4L L4 |
| Jeep | Patriot | 2017 - 2017 - 2017 - 2016 - 2016 - 2016 - 2015 - 2015 - 2015 - 2014 - 2014 - 2014 - 2013 - 2013 - 2013 - 2012 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2007 | 2.4L 2360CC L4 |
| Jeep | Patriot | 2017 - 2017 - 2016 - 2016 - 2015 - 2015 - 2014 - 2014 - 2013 - 2013 - 2012 - 2012 - 2011 - 2011 - 2011 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 | 2L 1998CC L4 |
| Kia | Sportage | 2001 - 2000 | 2L 1998CC L4 |
| Mitsubishi | Diamante | 2003 - 2003 - 2002 - 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 | 3.5L 3497CC V6 |
| Mitsubishi | Eclipse | 2012 - 2012 - 2011 - 2011 - 2010 - 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 - 2006 - 2006 | 2.4L 2378CC L4 |
| Mitsubishi | Eclipse | 2005 - 2005 - 2005 - 2004 - 2004 - 2004 - 2003 - 2003 - 2003 - 2002 - 2002 - 2001 - 2001 - 2000 - 2000 | 3L 2972CC V6 |
| Mitsubishi | Eclipse | 2005 - 2005 - 2004 - 2004 - 2003 - 2003 - 2002 - 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 - 1998 - 1998 - 1997 - 1997 - 1996 - 1996 | 2.4L 2351CC L4 |
| Mitsubishi | Eclipse | 1999 - 1999 - 1998 - 1998 - 1998 - 1997 - 1997 - 1997 - 1996 - 1996 - 1996 - 1995 - 1995 - 1995 - 1994 - 1994 - 1993 - 1993 - 1992 - 1992 - 1991 - 1991 - 1990 - 1990 | 2L 1997CC L4 |
| Mitsubishi | Eclipse | 1999 - 1999 - 1998 - 1998 - 1998 - 1997 - 1997 - 1997 - 1996 - 1996 - 1996 - 1995 - 1995 - 1995 | 2L 1996CC L4 |
| Mitsubishi | Eclipse | 1994 - 1994 - 1993 - 1993 - 1992 - 1992 - 1991 - 1991 - 1990 - 1990 | 1.8L 1755CC L4 |
| Mitsubishi | Galant | 2012 - 2011 - 2010 - 2010 - 2009 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 - 2007 - 2006 - 2006 - 2006 - 2005 - 2005 - 2005 - 2004 | 2.4L 2378CC L4 |
| Mitsubishi | Galant | 2004 - 2004 - 2003 - 2003 - 2002 - 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 | 2.4L 2351CC L4 |
| Mitsubishi | Galant | 2003 - 2003 - 2003 - 2002 - 2002 - 2001 - 2001 - 2000 - 2000 - 1999 - 1999 | 3L 2972CC V6 |
| Plymouth | Laser | 1994 - 1994 - 1993 - 1993 - 1992 - 1992 - 1991 - 1991 - 1990 - 1990 | 2L 1997CC L4 |
| Plymouth | Laser | 1994 - 1994 - 1993 - 1993 - 1992 - 1992 - 1991 - 1991 - 1990 - 1990 | 1.8L 1755CC L4 |
| Pontiac | G3 | 2010 - 2010 - 2009 | 1.6L 1598CC L4 |
| Pontiac | G3 | 2009 | 1.6L 1588CC L4 |
| Pontiac | G3 Wave | 2009 | 1.6L 1598CC L4 |
| Pontiac | Solstice | 2009 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2L 1998CC L4 |
| Pontiac | Solstice | 2009 - 2009 - 2008 - 2008 - 2008 - 2007 - 2007 - 2007 - 2006 - 2006 - 2006 | 2.4L 2384CC L4 |
| Pontiac | Wave | 2008 - 2007 - 2006 - 2005 | 1.6L 1598CC L4 |
| Pontiac | Wave5 | 2007 - 2006 - 2005 | 1.6L 1598CC L4 |
| Saturn | Sky | 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2L 1998CC L4 |
| Saturn | Sky | 2010 - 2009 - 2009 - 2008 - 2008 - 2007 - 2007 | 2.4L 2384CC L4 |
| Saturn | Vue | 2007 - 2007 | 2.4L 2384CC L4 |
| Saturn | Vue | 2007 - 2007 - 2006 - 2006 | 3.5L 3471CC V6 |
| Saturn | Vue | 2005 - 2005 - 2004 | 3.5L 3474CC V6 |
| Saturn | Vue | 2004 - 2004 | 3.5L 3475CC V6 |
| Suzuki | Forenza | 2008 - 2007 - 2007 - 2006 - 2005 - 2005 - 2004 - 2004 | 2L 1998CC L4 |
| Suzuki | Reno | 2008 - 2007 - 2006 - 2005 - 2005 | 2L 1998CC L4 |
| Suzuki | Swift+ | 2009 - 2008 - 2007 - 2006 - 2005 - 2004 | 1.6L 1598CC L4 |
| Height (in) | 8.31 |
|---|---|
| Length (in) | 9.5 |
| Width (in) | 6.94 |
| Cold Cranking Amps (CCA) | 500 |
| Cranking Amps (CA) | 625 |
| Group Size | 22F |
| Reserve Capacity | 90 |
| Terminal | Top Terminal |
| Voltage | 12 Volt |
| Warranty | Personal 18 Mo./Commercial 6 Mo. Free |
| Height (in) | 8.75 |
|---|---|
| Length (in) | 9.38 |
| Width (in) | 5.06 |
| Cold Cranking Amps (CCA) | 430 |
| Cranking Amps (CA) | 525 |
| Group Size | 51 |
| Reserve Capacity | 80 |
| Terminal | Top Terminal |
| Voltage | 12 Volt |
| Warranty | Personal 40 Mo./Commercial 18 Mo. Free |
| Height (in) | 6.94 |
|---|---|
| Length (in) | 10.06 |
| Width (in) | 7.19 |
| Cold Cranking Amps (CCA) | 560 |
| Cranking Amps (CA) | 700 |
| Group Size | 58 |
| Reserve Capacity | 100 |
| Terminal | Top Terminal |
| Voltage | 12 Volt |
| Warranty | Personal 40 Mo./Commercial 18 Mo. Free |
| Height (in) | 9 |
|---|---|
| Length (in) | 10.25 |
| Width (in) | 6.81 |
| Cold Cranking Amps (CCA) | 600 |
| Cranking Amps (CA) | 750 |
| Group Size | 24 |
| Reserve Capacity | 115 |
| Terminal | Top Terminal |
| Voltage | 12 Volt |
| Warranty | Personal 30 Mo./Commercial 12 Mo. Free |
